I have recently acquired a Crescent 12 bore and the fore end iron is loose on the under barrel lug. It is the type of retainer which uses a lever-like latch rather than friction and spring pressure to hold the iron to the barrels.

Any ideas for how best to snug this so it doesn’t rattle about?

Dtm #639816 12/23/23 02:54 PM
Joined: Oct 2006
Posts: 2,276
Likes: 528
Sidelock
**
Offline
Sidelock
**

Joined: Oct 2006
Posts: 2,276
Likes: 528
First order of business is to make certain that the forend loop isn’t loose.

Joined: Nov 2017
Posts: 42
Dtm Offline OP
Sidelock
OP Offline
Sidelock

Joined: Nov 2017
Posts: 42
It is not

Dtm #639826 12/23/23 09:05 PM
Joined: Jan 2002
Posts: 1,570
Likes: 75
Sidelock
***
Offline
Sidelock
***

Joined: Jan 2002
Posts: 1,570
Likes: 75
Remove the wood from the iron, place the iron on an anvil, strike the iron with a rounded punch at the rear of loop hole. Try it on the gun, repeat if necessary. If it is really bad ad a drop of metal with a welder.

2 members like this: mc, LeFusil
Joined: Oct 2006
Posts: 2,276
Likes: 528
Sidelock
**
Offline
Sidelock
**

Joined: Oct 2006
Posts: 2,276
Likes: 528
Originally Posted by mark
Remove the wood from the iron, place the iron on an anvil, strike the iron with a rounded punch at the rear of loop hole. Try it on the gun, repeat if necessary. If it is really bad ad a drop of metal with a welder.

Sweet baby Jesus don’t let JimmyW or BrentD see this post!

5 members like this: Ted Schefelbein, bushveld, mc, Stanton Hillis, mark
Dtm #639828 12/23/23 09:39 PM
Joined: Jan 2002
Posts: 13,183
Likes: 1161
Sidelock
**
Offline
Sidelock
**

Joined: Jan 2002
Posts: 13,183
Likes: 1161
Deleted

Last edited by Stanton Hillis; 12/24/23 02:07 PM.

May God bless America and those who defend her.
Dtm #639831 12/23/23 11:37 PM
Joined: Mar 2002
Posts: 2,857
Likes: 384
mc Offline
Sidelock
**
Offline
Sidelock
**

Joined: Mar 2002
Posts: 2,857
Likes: 384
You tighten the forend iron off the gun on an anvil ,I made an oval punch you strike it and check on the gun against the loup.

2 members like this: mark, LeFusil
Dtm #639833 12/23/23 11:48 PM
Joined: Oct 2006
Posts: 2,276
Likes: 528
Sidelock
**
Offline
Sidelock
**

Joined: Oct 2006
Posts: 2,276
Likes: 528
Many forend irons already have the “mark” on them for when they were initially fitted up to the barrels, loop & action. When you turn the iron over, there will be a line type mark….thats the mark left when the forend was peened….if it’s there already and the forend iron needs snugged up, this mark is where you place your punch.

2 members like this: mc, mark
Dtm #640129 12/31/23 10:42 AM
Joined: Jan 2013
Posts: 1,124
Likes: 195
Sidelock
***
Offline
Sidelock
***

Joined: Jan 2013
Posts: 1,124
Likes: 195
Like many engineering processes there is always another method and I was very surprised that Jack Rowe did not mention it in those Midway videos. Maybe he wanted to keep this method in the dark well it was used to solve the fore end problem on top maker guns especially if the barrel fore end anchor point was replaced or removed for some reason. It is simple and not that obvious to the eye so it does not stand out like a punch mark. Being simple though the down side is that it is not as quick as a punch a little more work is needed. Remove fore end wood from the Iron fit the Iron onto the barrels to ascertain where the gap needs to be removed. Now that you can see where you need to take up the slack you extend the fore end iron slot buy a quarter of an inch next file up a piece of steel that will enter the slot having a small amount extending into the original slot, heat to bright red push into the slot you have made and rivet it with a hammer top and bottom, then fit iron to the gun by removing the extra metal that is now in the iron slot . Clean and polish the area apply some instant blue or just heat the area gently until you reach the desired colour. If done carefully this method leaves no marks on the Iron and no signs of the added metal.


The only lessons in my life I truly did learn from where the ones I paid for!
1 member likes this: earlyriser
Dtm #640135 12/31/23 02:52 PM
Joined: Mar 2002
Posts: 2,857
Likes: 384
mc Offline
Sidelock
**
Offline
Sidelock
**

Joined: Mar 2002
Posts: 2,857
Likes: 384
I think what mark said above is a really good solution even with a really warn forend iron.i don't know how many people can invisibly inlay a metal piece.

Joined: Feb 2008
Posts: 11,346
Likes: 391
Sidelock
**
Offline
Sidelock
**

Joined: Feb 2008
Posts: 11,346
Likes: 391
Originally Posted by LeFusil
Originally Posted by mark
Remove the wood from the iron, place the iron on an anvil, strike the iron with a rounded punch at the rear of loop hole. Try it on the gun, repeat if necessary. If it is really bad ad a drop of metal with a welder.

Sweet baby Jesus don’t let JimmyW or BrentD see this post!

I'd bet the Nutty Professor saw it, but got vapor-locked, and couldn't respond.


A true sign of mental illness is any gun owner who would vote for an Anti-Gunner like Joe Biden.

Dtm #640269 01/03/24 06:59 PM
Joined: Jul 2012
Posts: 4,490
Likes: 211
Sidelock
**
Offline
Sidelock
**

Joined: Jul 2012
Posts: 4,490
Likes: 211
Mark's method is the "school solution" and the "punch" is easy to make, just grind the end of a small cold chisel to a rounded profile while keeping it cool and polish it. There should be no mark on the side that is visible. This can make the gun a little hard to open, but it will wear in after some use.
Mike

1 member likes this: mc
Dtm #640381 01/06/24 08:38 AM
Joined: Jan 2002
Posts: 13,183
Likes: 1161
Sidelock
**
Offline
Sidelock
**

Joined: Jan 2002
Posts: 13,183
Likes: 1161
Could someone post a close up pic of the tip shape of the punch one would use to do this? If you cannot due to an inability to post pics on this forum you may alternatively send it to me at stanhillis@gmail.com. and I will post it.

Thanks.


May God bless America and those who defend her.
Joined: Jul 2012
Posts: 4,490
Likes: 211
Sidelock
**
Offline
Sidelock
**

Joined: Jul 2012
Posts: 4,490
Likes: 211
Stan,
I don't have one on hand, I just used one in Walter Grass' shop, and I think he has passed on. If I had a need for one, I would just take a cold chisel, about as wide as the forearm iron, and round off /polish the chisel edge so it would pein rather than cut the metal.
Mike

1 member likes this: Stanton Hillis
Dtm #640421 01/06/24 07:28 PM
Joined: Jan 2002
Posts: 13,183
Likes: 1161
Sidelock
**
Offline
Sidelock
**

Joined: Jan 2002
Posts: 13,183
Likes: 1161
Mike, as wide as the entire forend iron, or as wide as the slot


May God bless America and those who defend her.
Dtm #640429 01/06/24 09:31 PM
Joined: Dec 2011
Posts: 909
Likes: 43
Sidelock
*
Offline
Sidelock
*

Joined: Dec 2011
Posts: 909
Likes: 43
As wide as the slot

1 member likes this: Stanton Hillis
Dtm #640441 01/07/24 08:15 AM
Joined: Jan 2002
Posts: 13,183
Likes: 1161
Sidelock
**
Offline
Sidelock
**

Joined: Jan 2002
Posts: 13,183
Likes: 1161
That's what I was thinking but wanted to be sure. Thanks, Mark.

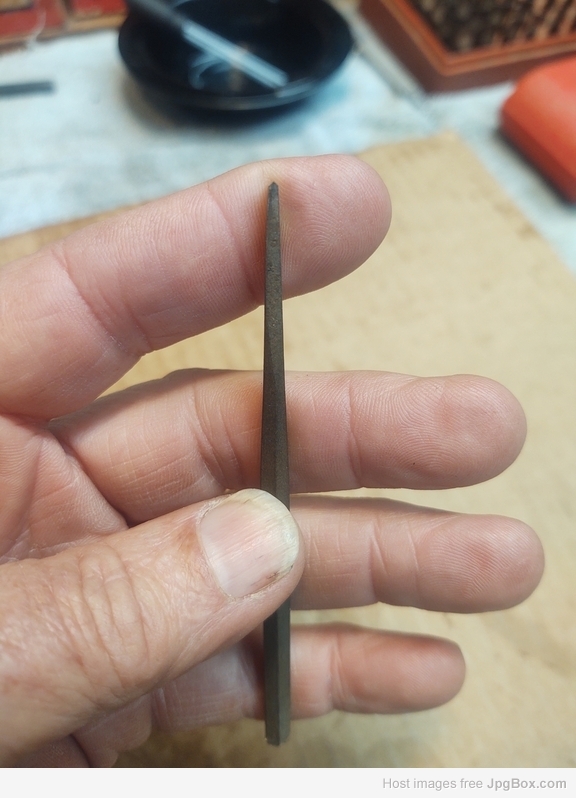

Would this one be a candidate for grinding into shape? Sure seems small to me, but I never use it for anything else anyway. It's being held sideways ..... if viewed after a 90 degree rotation from this you could see that the end is about 1/4" wide, and could be easily ground to the width of the slot.

[Linked Image from jpgbox.com]


May God bless America and those who defend her.
Joined: Jul 2012
Posts: 4,490
Likes: 211
Sidelock
**
Offline
Sidelock
**

Joined: Jul 2012
Posts: 4,490
Likes: 211
Stan,
I wouldn't be surprised to learn that some gunsmiths used a punch only as wide as the slot (making a bulge within the slot), but the ones I learned from were of the "school" that used a punch about as wide as the whole iron on the breach side of the slot. This had the effect of stretching the iron, moving the slot itself toward muzzle. Keep in mind that only a few thousandths of an inch movement are necessary.
Mike

1 member likes this: Stanton Hillis
Dtm #640621 01/10/24 04:41 PM
Joined: Oct 2006
Posts: 2,276
Likes: 528
Sidelock
**
Offline
Sidelock
**

Joined: Oct 2006
Posts: 2,276
Likes: 528
These forend irons are off of two British guns. A Greener G gun that I bought for parts and a Charles Osborne that I’m currently working on. These pics are of the underside of the irons, showing where the factory “peen” marks are that were made by a shaped punch and a heavy hammer when fitting up the forend irons and then used for subsequent tightening.

Osborne
[Linked Image from i.ibb.co]

Greener
[Linked Image from i.ibb.co]

1 member likes this: earlyriser
Joined: Aug 2017
Posts: 272
Likes: 91
Sidelock
Offline
Sidelock

Joined: Aug 2017
Posts: 272
Likes: 91
Originally Posted by LeFusil
Greener
[Linked Image from i.ibb.co]

That salvo of ball-peen marks, though... Any idea what that's all about?

Joined: Oct 2006
Posts: 2,276
Likes: 528
Sidelock
**
Offline
Sidelock
**

Joined: Oct 2006
Posts: 2,276
Likes: 528
Originally Posted by Fudd
Originally Posted by LeFusil
Greener
[Linked Image from i.ibb.co]

That salvo of ball-peen marks, though... Any idea what that's all about?

Have no idea. This was a strictly a parts gun. It’s over 125 years old. No idea why it has those marks. I was posting pics to show people what the forend tightening peen marks looks like. Disregard all of the other things going on….concentrate on the red arrows. There’s obviously not that many folks here that know what marks to look for, where they’re located and how they are used as a landmark in the trade to tighten a forend.

1 member likes this: mc
Dtm #640650 01/11/24 07:27 AM
Joined: Jan 2002
Posts: 13,183
Likes: 1161
Sidelock
**
Offline
Sidelock
**

Joined: Jan 2002
Posts: 13,183
Likes: 1161
Thanks a bunch, Dustin, for those pics. That perfectly illustrates the process. A picture truly can be worth a thousand words.


May God bless America and those who defend her.
1 member likes this: mc
Joined: Jul 2012
Posts: 4,490
Likes: 211
Sidelock
**
Offline
Sidelock
**

Joined: Jul 2012
Posts: 4,490
Likes: 211
Stan,
Maybe it a difference between common British shop practice and common German shop practice.
Mike

1 member likes this: Stanton Hillis
Dtm #640676 01/11/24 07:53 PM
Joined: Mar 2002
Posts: 2,857
Likes: 384
mc Offline
Sidelock
**
Offline
Sidelock
**

Joined: Mar 2002
Posts: 2,857
Likes: 384
American guns are adjusted the same way as Dustin is showing in the pictures.

1 member likes this: Stanton Hillis
Dtm #643891 03/10/24 05:51 PM
Joined: Feb 2006
Posts: 3,737
Likes: 55
Sidelock
**
Offline
Sidelock
**

Joined: Feb 2006
Posts: 3,737
Likes: 55
The ball-peen marks are from someone trying to stretch the metal tighter to the opening.


David


Joined: Aug 2017
Posts: 272
Likes: 91
Sidelock
Offline
Sidelock

Joined: Aug 2017
Posts: 272
Likes: 91
Originally Posted by David Williamson
The ball-peen marks are from someone trying to stretch the metal tighter to the opening.

Merci. Hopefully not during initial factory assembly.

Dtm #643903 03/10/24 09:46 PM
Joined: Mar 2002
Posts: 2,857
Likes: 384
mc Offline
Sidelock
**
Offline
Sidelock
**

Joined: Mar 2002
Posts: 2,857
Likes: 384
Of course fudd no consumer would do that only the factory:)
